Simplex Big

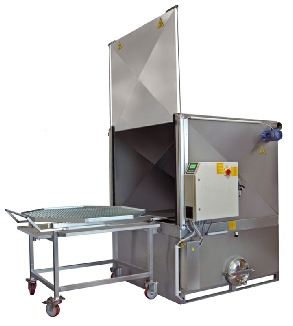

The Simplex Big parts washer automatically cleans medium to large sized mechanical parts.
The cleaning fluid is sprayed onto the dirty parts through upper, lower and side jets, whilst the cleaning platform is rotated by a gear motor with a torque limiter.
The operator can manage the time, temperatures, levels, signals and alarms using the PLC electrical system.
The Simplex Big range uses environmentally-friendly, VOC-free Bio-Chem Star and Alu-star cleaning agents.
Model features:
- Timed vapour extraction
- Two-hand control for door closing with safety control unit
- External loading/unloading trolley with AISI 304 stainless steel drip collector and wheels with safety break
- ISO pneumatic cylinders and anti-fall pneumatic safety valves
- Stainless steel electric pump(s) with special gaskets
- AISI 304 stainless steel filter on pump section
- Minimum level control of the liquid inside the tank to protect the pump and resistor
- Maximum level control of the liquid inside the tank and solenoid valve for automatic water loading
- Gear motor for platform rotation with torque limiter centring sensor
- Incoloy stainless steel electrical resistors
- Safety limit switch on door opening
- Electrical cabinet IP65, PLC electrical system (DGT V3)
- Stainless steel structure and sheets
- Galvanised iron lower load-bearing structure
- Triple door gasket (lower, upper and lateral)
- Galvanised iron reinforced platform of pressed grating with raised external edge
- Laser-drilled, AISI 304 stainless steel upper, lower and lateral fixed washing/rinsing/blowing pipes
- Sludge discharge door(s) for easy tank cleaning
