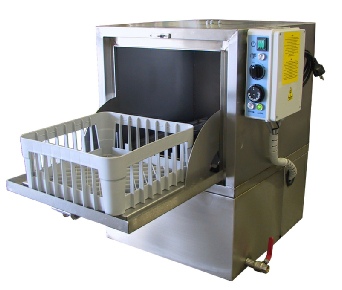

The compact Minilav parts cleaner is ideal for washing small parts and can be placed in narrow spaces or on top of a workbench.
A powerful stainless steel pump rotates the upper and lower jets, which spray the cleaning fluid over the parts.
The washing time and cleaning fluid temperature can be manually set by the operator.
The Minilav uses environmentally-friendly, VOC-free cleaning agents: Bio-Circle liquids, CB 100, GS 200, Star and Alu-star.
Model features:
- Basket of reinforced PVC with a 150mm border
- Minimum tank level check to protect the pump and resistor
- Compact size - designed to be placed on workbenches
- Stainless steel electric pump with special gaskets
- Incoloy stainless steel electrical resistor
- Stainless steel structure and sheets
- AISI 304 stainless steel rotating piping with laser jets
- Lantern door closing system
- Filter on pump suction (μm)
- Safety switch on door opening
Service intervals are dependent on usage.
|
|
Minilav |
|
Closed machine dimension (w*d*h) (mm) |
700*620*780 |
|
Open machine dimension (w*d*h) (mm) |
700*1050*780 |
|
Washing capacity (w*d*h) (mm) |
350*350*300 |
|
Basket load capacity (kg) |
20 |
|
Machine weight (kg) |
50 |
|
Tank capacity (litres) |
30 |
|
Washing pump (kW - bar - litre/min) |
0.37 - 2.0 - 40 |
|
Washing power (kW) |
2 |
|
Power supply (V) |
230/50/1 |
Brochure
