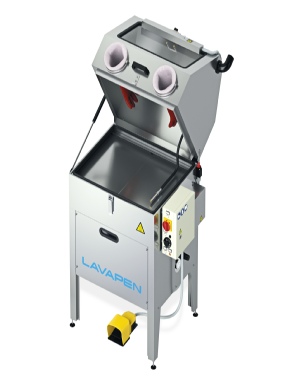

The Lavapen AP 50 is a parts washer suitable for small and medium sized mechanical parts. The internal gloves allow for manual cleaning within the enclosed cabinet under high pressure that can reach up to 80 bar pressure. Effectively an enclosed industrial power washer to remove difficult and heavy contaminations quickly.
Parts are cleaning using a high pressure pump and a special spray nozzle that can be hand held or locked above the working area allowing the part to be turned using both hands. Cleaned parts can be dried using a compressed air gun, which also extracts the vapours produced in the cleaning chamber.
The Lavapen AP 50 uses environmentally-friendly, VOC-free Bio-Chem cleaning agents: Bio-Circle Liquids, CB 100, GS 200, Star and Alu-star.
Model features:
- Vapour extraction via a Venturi compressed air system with throttle valve
- Hand held or fixed washing nozzle jet
- Compressed air blowing gun
- Removable panels of AISI 303 stainless steel between the washing chamber and tank
- Closing door with hoses and integrated tempered glass
- Assisted door closing with gas spring and hook
- Filter on pump system (500μm)
- Washing activation by pedal
- Safety switch on door opening
- Stainless steel plates
Service interval is dependent on usage.
|
|
LP3 AP 50 |
LP 4 AP 50 |
|
Closed machine dimensions (w*d*h) (mm) |
120 x 85 x 170 |
145 x 95 x 180 |
|
Open machine dimesions (w*d*h) (mm) |
120 x 120 x 185 |
145 x 110 x 180 |
|
Washing capacity (w*d*h) (mm) |
95 x 70 x 55 |
120 x 8 x 55 |
|
Load capacity (kg) |
70 |
70 |
|
Washing tank capacity (litres) |
75 |
90 |
|
Washing pump (electrical model) (kW - bar - litre/min) |
1.87- 80 - 15 |
1.87 - 80 - 15 |
|
Washing heating (electric model) (kW) |
2 |
2 |
|
Supply (electric model) (V) |
230/50/1 |
230/50/1 |
|
Supply (pneumatic model) |
Compressed air 6 bar |
Compressed air 6 bar |
|
Compressed air consumption (electric model) (litre/min - m³/h) |
10 - 0.6 |
10 - 0.6 |
